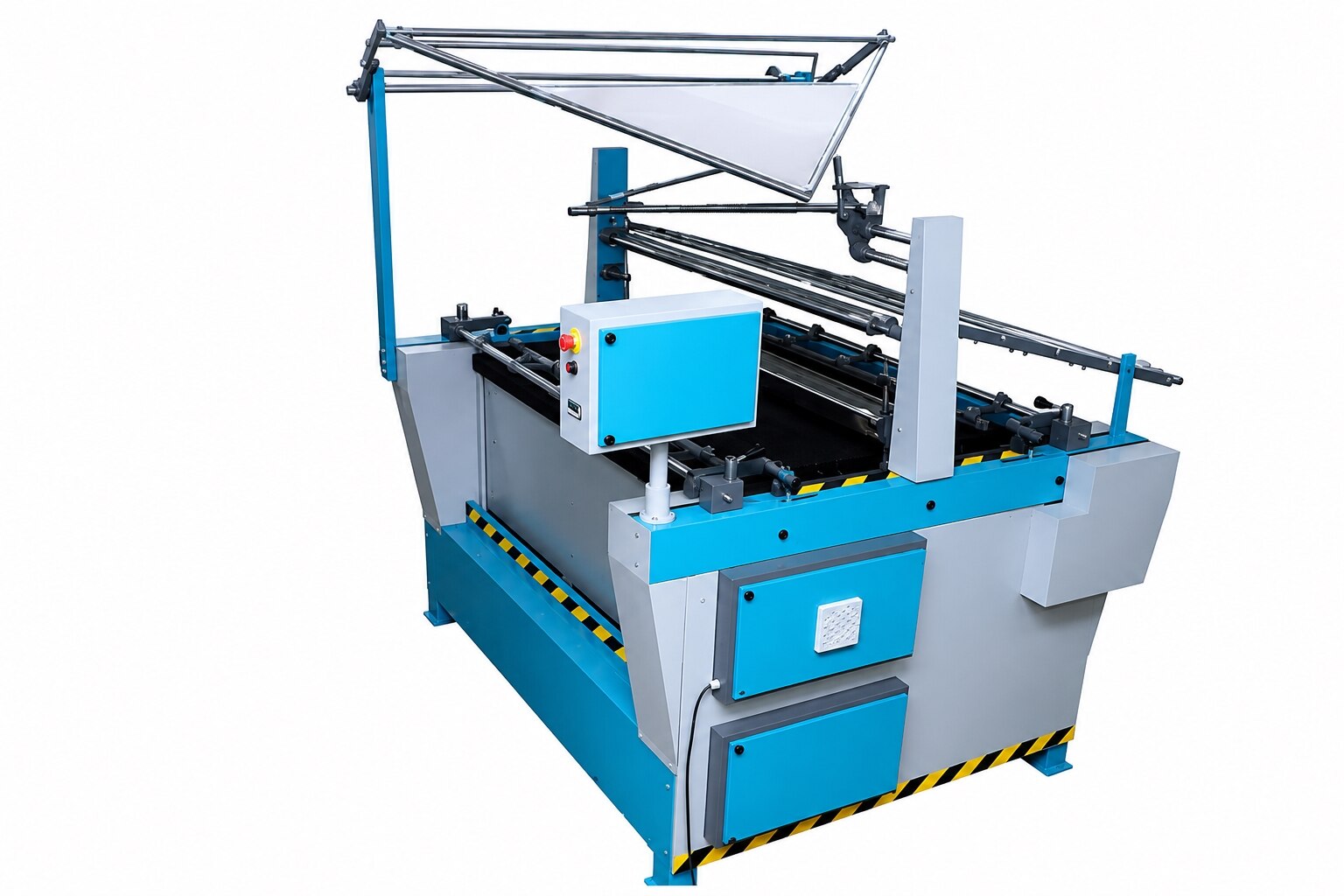

FABRIC FOLDING MACHINE 52 Maximum working fold size 48 Single fold default Double fold optional CORE OPERATIONAL FUNCTIONS Variable Speed Control: Adjustable settings to accommodate various fabric weights and types. Intuitive Fold Size Adjustment: Quick and effortless modification of final fold dimensions. Automated Pallet Table: Fully automated, synchronized lifting and lowering system. Digital Production Counter: Real-time throughput display for accurate batch tracking. Operational Speed Monitoring: Live digital readout of current machine running velocity. Integrated Hour Meter: Monitors cumulative runtime to streamline preventative maintenance schedules. Dual-Mode Operation: Versatile system architecture supporting both single-fold and double-fold processing. Secure Speed Lock: Password-protected access control to safeguard specialized operational parameters. AUTOMATED TABLE FEATURES Dual-Control Integration: Electronic configuration supporting both automatic and manual table positioning. Rapid Positioning: Empty table full-elevation cycle achieved efficiently in approximately 25 seconds. Optimized Lowering Clearance: Minimum table descent height of 20 inches. Heavy-Duty Lifting Capacity: Robust structural engineering to handle high-load capacities with minimal mechanical strain. Retractable Table Board: Pull-out design providing seamless maintenance access and simplified material handling. PREMIUM MECHANICAL COMPONENTS & BUILD QUALITY Vibration-Free Chassis: Heavy-duty, rigid structural frame design ensuring optimal stability at peak operating speeds. High-Grade Castings: Manufactured using premium Spheroidal Graphite (SG) iron for vastly enhanced tensile strength. Material Optimization: Grade 304 Stainless Steel utilized across all fabric contact zones to prevent snagging and contamination. Premium Bearing Architecture: Equipped with industrial-grade NTN, SKF, and FKG bearings to maximize operational lifespan. Advanced Bushing Materials: High-wear Teflon and bronze bushings utilized for self-lubricated, low-friction operation. Industrial Fasteners: High-tensile UNBRAKO and TVS fasteners used throughout for superior joint integrity under stress. Precision Drive System: High-performance timing belts and precision-machined pulleys ensure exceptional folding accuracy. Low-Maintenance Design: Engineered with a focus on extended service intervals and minimal lifetime downtime. ADVANCED ELECTRICAL & ELECTRONIC SYSTEMS Programmable UI Panel: Ergonomic, soft-touch digital controller interface for intuitive machine operation. Power Requirements: Configured for a stable, robust 3-Phase industrial power supply. Servo Drive System: High-precision 2.0 kW XINJE servo motor and drive assembly for dynamic motion control. Variable Frequency Drives: Premium 1.0 HP ROBOX AC drive system dedicated to precise table management. Secondary Drive Mechanism: Reliable 0.5 HP AC gear motor for auxiliary automated table control. Power Conditioning: Integrated isolation transformer protecting sensitive electronic components to ensure long system longevity. IndiaFirst Engineering manufactures highly efficient fabric folding machines designed for industry-leading accuracy, durability, and extended operational lifespans.
